Paddy Seprator

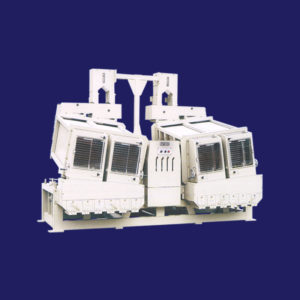

The satake paddy separator PS is an oscillation –type paddy separator with a very high sorting performance and an easy maintenance design.All varities of rice such as long grain,medium grain and short grain can be sorted easily and accurately. It seperates a mixture of paddy and brown rice into three distinct classes paddy, mixture of paddy and brown rice and brown rice,to be sent to a husker,back to the paddy separator and to a rice whitener, repectively.
FEATURES
- Stable performance
Adjustment during operation is not necessary because of its constant and stable separating performance.
- Minimized installation space
Compact design and large capacity means that installation space for a given separating capacity is very small.
- Automatic stop device
Machine automatically stops when the tank is nearly empty.
- Easy sampling
Samples of browm rice can be taken from a special outlet by diverter valves for easy inspection of quality and flow rate.
- Easy inpectionn of separating condition
The discharge side is covered with a transparent cover so that the separating conditions of the grain are easily checked.
- Easy flow adjustment
Flow rates are adjusted by a manual remote lever on “D” model and by increase / decrese buttons on “DR” model.
Specifications
MODEL | PS2000(2)-T | PS400D(2)-T | PS800D |
Required power (kw) | 0-75(4p) | 2-2(4p) | 3-7(4p) |
Output capacity(t/h)*1 | 3-35 | 5-6 | 7-10 |
- 1 Brown Rice ,long Grain,Non parboiled
MODEL | W(mm) | L(mm) | H(mm) | Weight(kg) | Volume |
PS200D(2)-T | 1,330 | 1,760 | 2,220 | 970 | 5.7 |
PS400D(2)-T | 2,230 | 1,870 | 2,240 | 1,670 | 9.4 |
PS800D | 3,130 | 1,760 | 2,360 | 2,250/2,300 | 14.0 |
