Paddy Husker
Designed with our coustomer in mind

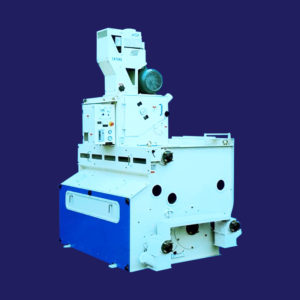

Satake as a toral food enginerring company, introduce, its unique technologies into the new paddy husker HR10FH-T .It achieves the highest level of performance and functionality.
Features and benefits:
- Feeder
The vibratory feeder, proved in the color sorter,is introduced. It simultaneously provides smooth,consistent and high throughput. It is equipped with a feeder volume control which can vary the flow rate in a continuous linear manner.
- Chute
The new chute is designed to be automatically controlled in the best orientation. It maintains the paddy on the chute in a uniform and consistent steam. Compared with others it offers improved husking efficiency and recovery.
- Aspirator
The wide body and adjustable distribution valve further improves the capacity and efficiency. The outlet for immature grain is eliminated because of the excellent separation of rice from husk.
- Concept
Functionality and maintainability have been considered. We have introduced a step and a rolls and tools for ease of roll retainer for rolls and tools for ease of roll replacement.There are inspection windows both in front and rear of the aspirator. Removable inspection covers on both the right and left side of the aspirator body assist easy maintenance.
Spaceefficient and accurate.
- Motor Mounting
A simple tension pulley provides sufficient adjustment thus eliminating the motor base angle adjustment.
- Dust Exhaust
The air flow is redesigned to assist the smooth feeding of paddy to the rolls.
- Husker Position
Relocated back to the centre of the aspirator for even and stable distribution of husked rice.
- Inspection cover
Removable for maintance. Light in weight for the operators convenience.
- Acrylic Drive cover
Totally enclosed but observable. The new cover is superior in strength.
Geared Motor Direct Coupling
The simplified belt routing enables observation from behind .
- Detachable Round Body and Screw Casing
Maintenance from the other side is possible. Easy to clean husk outlet.
- New Motor Layout
Makes tensioning simple and easy.
Specification
Model | HR10FH-T | |
Component (Husker & Aspirator) | HU10FH(2)-T + HA10WA(3)-T | |
Short Gain Rice | ||
Medium Gain Rice | ||
Long Gain Rice | ||
Basmati (Non-Parboiled) | ||
Basmati (Parboiled) | ||
Required Power (Kw) | HU:7.5+0.052 HA:3.7+0.1 |
