Destoner

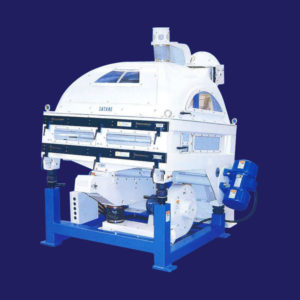

The satake destoner SGA separates stones and heavy impurities from grains, utilizing bulk density differences.
Rigid, heavy-duty construction with thicker steel plates and a study frame ensures long life.
This is the ideal machine for separating stones from grain in an efficient, trouble-free manner.
Features:
- Stone Discharging and resort Mechanism:
The discharged stones from the primary sieves contain some grains. This mixed fraction is sent to the secondary sieve by a pneumatic transfer system, using a built-in fan. Stones are concentrated and discharged.
- Very Low Maintenance:
Heavy-duty construction, permanent lubrication and easy access to sieves for cleaning or replacement result in very low maintenance.
- Compact Design:
The Satake Destoner is a compact unit and requires less installation space. The vibratory drive eliminates the need for any pulleys, belts, eccentric bearings, etc. and contributes to the improved sanitation in plants.
Specification
MODEL | SGA5B-T | SGA10B (2)-T | SGA15BD-T | |
Capacity (t/h)* | Paddy | 4 | 8 | 10 |
Brown Rice | 5 | 10 | 15 | |
Wheat | 5-7 | 7-13 | 13-18 | |
Required Motor (Kw) | 2.7 | 2.7 | 2.7 | |
Air Volume (m3/min.) | 80-90 | 120-140 | 180-210 | |
Static pressure (kPa) | -1.0 | -1.0 | -1.0 |
Material Condition
Material | Moisture Content (%) | Bulk Density (t/m3) |
Paddy | Less than 15 | 0.50 ~ 0.60 |
Brown Rice | Less than 15 | 0.75 ~ 0.80 |
Wheat | Less than 15 | 0.72 ~ 0.85 |
*Capacities are dependent on material characteristics.
Model | W (mm) | L (mm) | H (mm) | Net Weight (kg) |
SGA5B-T | 1,225 | 1,995 | 1,979 | 620 |
SGA10B(2)-T | 1,754 | 1,995 | 1,946 | 750 |
SGA15BD-T | 2,371 | 1,995 | 2,180 | 1,020 |
